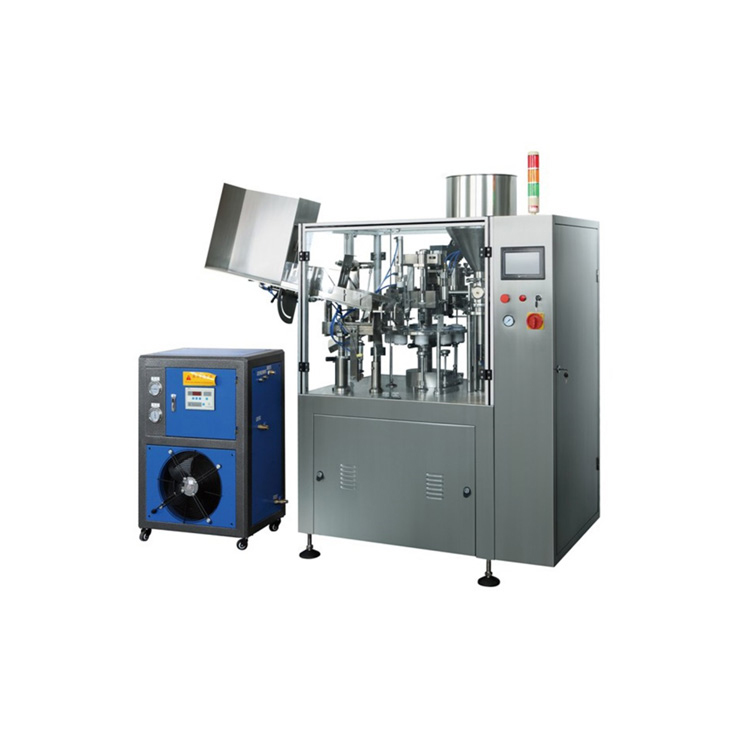

Moşena sekinandinê ya tîrêja tîrêjê ya ultrasonîk ya bijîjkî û derman

Danrel Ultrasonic Tube Filling Sealing Machine

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Taybetmendiyên sereke

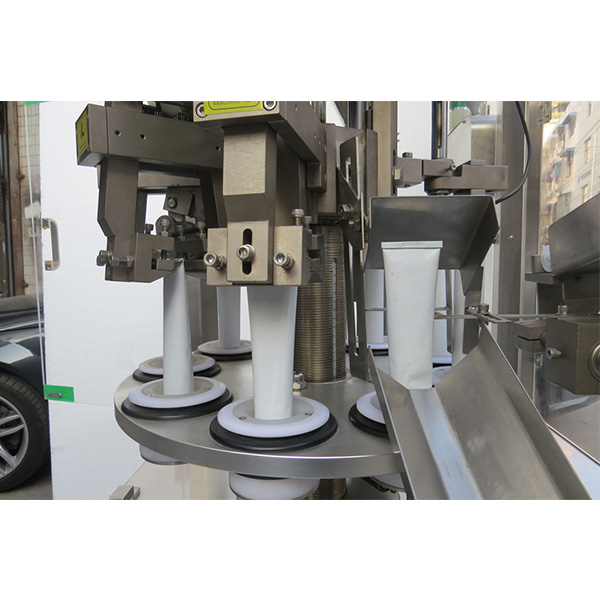

1. Automatic rotary table with 10 tube holders, servo motor control

2. Adopt digital ultrasonic circuit, stable output and performance

3. Machine body of stainless steel, meet with GMP requirement

4. PLC/HMI control, simple operation and parameters setting

5. Machine with mark searching function, more precise sealing

6. Main parts adopt imported components, Japan and Taiwan

7. Suitable for plastic tubes, composite tubes, PE tubes.

8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following

Avantajên:

* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving

Functions:

1. Tube Filling
2. Mark Searching
3. Ultrasonic Sealing
4. Cutting (trimming)
5. Batch No Coding
6. PLC/HMI control, English/French/Espanol interface as request
7. 10 tube stations, 20-25 tubes/min
8. Stainless steel body, Meet with GMP requirement
9. Meet with CE requirement.

Ultrasonic Power	2000W
Frequency	20 KHz
Navê min	AC 110/220V, 50/60Hz
Delay Time	0.01-2.99 S
WeldTime	0.01-2.99 S
HoldTime	0.01-2.99 S
Driven Mode	Pneumatic
Stroke	75 MM
Zexta xebatê	0.5-0.7 MPa
Tube Diameter Range	10-50 MM
Tube Height Range	50-250 MM
Rêzeya tijî	A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Working Station Number	10
Volume Hopper	30 L
Kanîn	20-35 tubes/min
Mezinahiya pakkirinê	L*W*H 1310*1050*1760 mm
Giraniya girseyî	440 KGS

It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Moşena tijî kirin

Multiple purpose filling machine can fill cream, gel, liquid, ointment, etc. Every part can be removed for easy cleaning.

Nozzle tije kirin

Anti-drip filling nozzle for liquid, cream, gel, ointment, etc

Plc Touch Screen

Ji bo mîhenga bilez ji bo dîmendera touch hêsantir a operasyonê.

Mark Search/Orientation

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube

Ultrasonic Horn

Chrome-plating ultrasonic horn, more durable. Sealing and printing at the same time.

Xizmeta me

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
